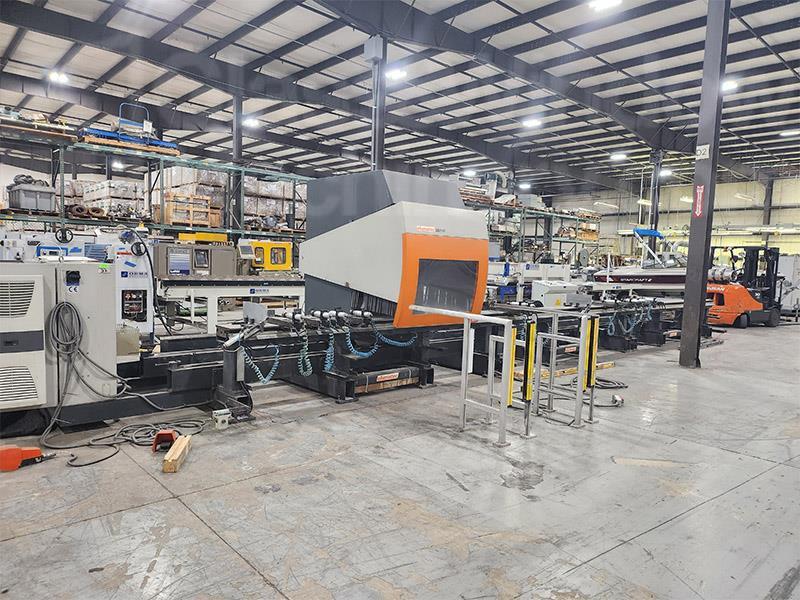

ELUMATEC SBZ 130 PROFILE MACHINING CENTER


Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010532
Brand/Model:   ELUMATEC SBZ 130
Machine Type:   PROFILE MACHINING CENTER
Year of Mfg.:   2003
Condition:   Very good condition
Elect./Voltage:   480 V, 60 Cy, 3 Ph.
Appr. Repl. Cost:   $  295,000
Price:   $  42,000   USD     (Convert)
Financing:   $  854/Mo.
Questions?
For Instant Communication, Click Here
Description:
ELUMATEC - SBZ-130, ... CNC Aluminum Profile Machining Center - 10.2 Meter

3-Axis CNC Profile Machining Center designed for economical and efficient machining of aluminum, steel & stainless steel profiles. All operations, such as routing, drilling, and tapping are performed while the profile bar is stationary to protect the profile surfaces.

The onboard turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles. The turret head can be equipped with (8) tools or angle routing heads. Also, features automatic clamp recognition.

Specifications:
Bed length: 10.2 Meters (402")
Max. machining length with profile end machining: 10,080 mm (397")
Max. machining length without profile end machining: 10,200 mm (402")
Traverse X-axis: 10,200 mm (402");  V max. 60 MPM (197 FPM)
Traverse Y-axis: 485 mm (19"); V max. 30 MPM (98 FPM)
Traverse Z-axis: 340 mm (13"); V max. 30 m/Min (98 FPM)
Max. spindle speed: 6,000 RPM
Spindle power output: 5.5 kW

Dimensions: 11,540 x 4,230 x 3,100 mm (454" x 167" x 122")
Weight: 7,257.5 kG (16,000 Lbs)

Features:
Tool changer with (8) tools on turret head.
15" Flat screen display, Windows operating system; and network connection (RJ45 Connection For Networking - 10/100 MBit).
(8) Horizontal Pneumatic Clamps with Automatic Recognition System.
Work Enclosure with Window.
Pulsed Coolant System.
Automatic clamping device with collision detection.
(2) Front/Back Right Angle Tool Holders.
(4) Straight Tool Holders.
(2) Pneumatic Work Stops.
Foot Pedal Controlled Material Stop

NOTE: The machine is in very good operating condition: Ready for immediate shipment!

NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics” to your Door: Packaging, Freight, Insurance (door to door), and domestic shipping to your Plant Door.





    Region: MIDWEST (Click for Regional Map)
    Special Note: Great Value
    Comment: Well maintained condition. - Controller module updated & serviced JAN 2022
    *Dimensions: 0" L x 0" W x 0" H
    *Weight: 0 Lbs
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
