EXF #:   WM-010520
Brand/Model:   STURTZ WELDING / CLEANING
Machine Type:   WINDOW LINE
Year of Mfg.:   2016
Condition:   Excellent condition
Elect./Voltage:   400 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:   $  450,000
Price:   $  189,500   USD     (Convert)
Financing:   $  3,766/Mo.
Questions?
For Instant Communication, Click Here
Description:

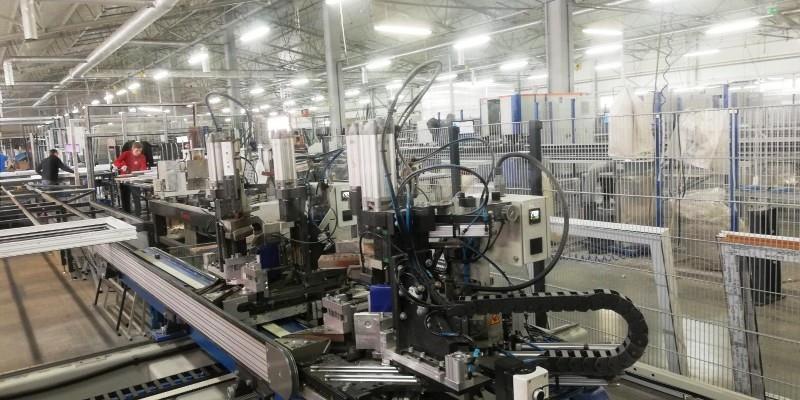

STURTZ CNC PVC Window Welding/Cleaning Production Line

German engineered CNC cleaning and welding production line for PVC windows. Suited for mid to large production manufacturing environments and compatible with all PVC window profiles. Depending upon the product mix, up to 120 windows with one element per welding cycle can be welded in a diagonal or parallel joining process within an 8 hour shift.

PC-based control technology with LCD process-reliable display of production and machine data with easy to operate intuitive menu navigation and the visual representation of machining processes on the touchscreen display.

Window Welding/Cleaning Production Line Consists Of The Following Components:

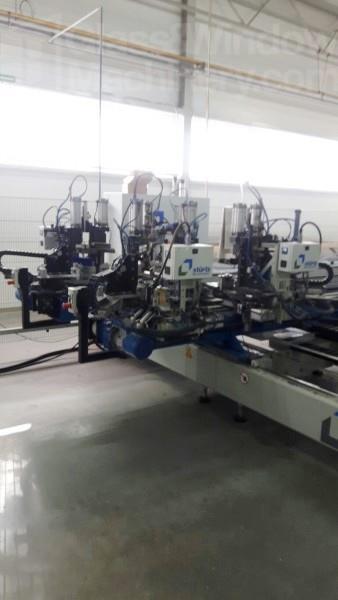

STURTZ ConnectStar H-4-P TURBO 30/26  Multi-Point (4-Head) Horizontal Welding Machine (2016)
CNC simultaneous high temperature welding of four corners at an angle of 90° with parallel welding feed. With electronic positioning of welding heads, PC control, Weld seam limitation of 2 mm & automatic out-feed.

Specifications:
Working direction: Right to Left
Line capacity: Standard 120 units / 8 hours shift. 1 unit = 1 frame + 1 sash
Min. window size: 330 x 320 mm (13" x 12.5")
Max. window size: 3000 x 2600 mm (118" x 102")
Min. profile depth: 45 mm (1.77")
Max. profile depth: 120 mm (4.7")
Min. profile sight line: 25 mm ( 1")
Max.. profile sight line: 130 mm (5.1")

Weight: 3100 kG (6,820 Lbs)

STURTZ Transport / Cooling Table (2016)
The powered automatic table transports the elements from welding to cleaning positions during which time the welds are allowed to "cool".

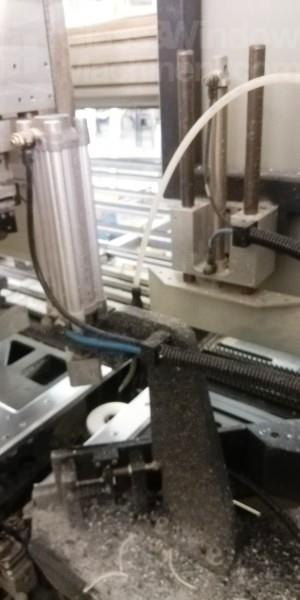

STURTZ 4AM-US CNC Single Head Corner Cleaner (2014)
CNC Corner cleaning machine with (4) interpolating axes for a complete machining of corners of uPVC window frames. Fully automatic cleaning of visible surfaces, outer corners, seal grooves, inner corners on uPVC window frames and sashes.

Features:
4-Axis Single Head Cleaner
Four axis system for fast, simultaneous top and bottom cleaning
Flexible outer contour machining with saw blade
Graphical Teach-in programming under Windows operating system
Automatic profile recognition
Tooling capability to clean most North American profiles
Optional tools to clean radii and slopes
Optional automatic turning station
Optional Network capability to welder

Machine dimensions: 3353 x 2057 x 2134 mm (132“ x 81“ x 84“)
Weight: 1500 kG

STURTZ Rotating Station / Table (2014)


NOTE: Machines are in excellent working condition - Service of Experienced Technicians available for "Professionally disconnecting, packaging, containerizing and reinstallation" of the equipment.

NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
    Region: EUROPE (Click for Regional Map)
    Special Note: Rare Find
    Comment: Late model ELUMATEC/STURTZ production window line ...wont last long!
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
