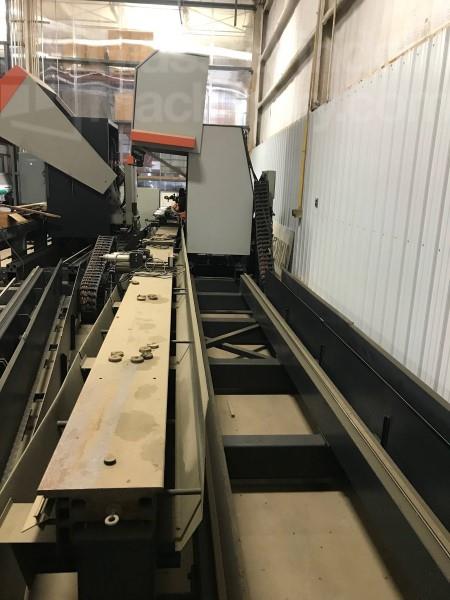

ELUMATEC SBZ 130 PROFILE MACHINING CENTER


Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010505
Brand/Model:   ELUMATEC SBZ 130
Machine Type:   PROFILE MACHINING CENTER
Year of Mfg.:   2000
Condition:   Good Condition
Elect./Voltage:   480 V, 60 Cy, 3 Ph.
Appr. Repl. Cost:   $  270,000
Price:   $  79,500   USD     (Convert)
Financing:   $  1,589/Mo.
Questions?
For Instant Communication, Click Here
Description:
ELUMATEC SBZ-130 CNC Aluminum Profile Machining Center - 8.5 Meter

3-Axis CNC profile machining center designed for economical and efficient machining of aluminium, steel and stainless steel profiles. All operations, such as routing, drilling and tapping are performed while the profile bar is stationary to protect the profile surfaces.

The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles. The turret head can be equipped with eight (8) tools or angle routing heads. Automatic clamping adjustment enables the machine to position the material clamps.

Specifications:
Bed length: 8.5 meters (335")
Max. machining length with profile end machining, 8,380 mm
Max. machining length without profile end machining, 8,500 mm
Traverse X-axis: 8500 mm (335"") / V max. 60 m/Min (197 FPM)
Traverse Y-axis: 485 mm (19") / V max. 30 m/Min (98 FPM)..
Traverse Z-axis: 340 mm (13") / V max. 30 m/Min (98 FPM).
Max. spindle speed: 6000 RPM
Spindle power output 5.5 kW

Dimensions: 10,540 x 4230 x 3100 mm (415" x 167" x 122")
Weight: 7257.5 kG (16,000 lbs)

Features:
Tool changer with (8) tools on turret head
(12) Horizontal Pneumatic Clamps With Automatic Positioning Recognition System
Touch Screen Windows operating system
15" Flat screen display, USB ports and network connection (RJ45 10/100 MBit)
(8) Horizontal Pneumatic Clamps With Automatic Positioning Recognition System
Work Enclosure With Window
Pulsed Coolant System
Automatic clamping device with collision detection
(2) Front/Back Right Angle Tool Holders
(4) Straight Tool Holders
(2) Pneumatic Work Stops
Foot Pedal Controlled Material Stop


NOTE: The machine is dismantled & in storage. Will need regular service but in good operating condition.

NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics” to your Door. …Packaging, Freight, Insurance (door to door), domestic shipping to your Plant Door.





    Region: MID ATLANTIC (Click for Regional Map)
    Special Note: Bargain
    Comment: ELUMATEC SBZ 130 machining center...dismantled & ready to ship!
    *Dimensions: 0" L x 0" W x 0" H
    *Weight: 0 Lbs
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
