URBAN SV 530 / 4B CNC CORNER CLEANER

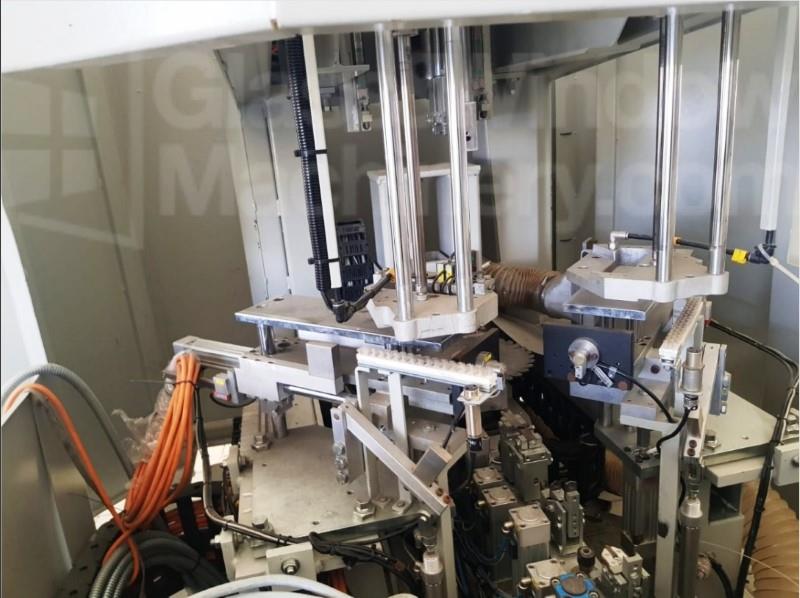

Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010492
Brand/Model:   URBAN SV 530 / 4B
Machine Type:   CNC CORNER CLEANER
Year of Mfg.:   2012
Condition:   Excellent condition
Elect./Voltage:   230/400 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:   $  185,000
Price:   $  79,500   USD     (Convert)
Financing:   $  1,589/Mo.
Questions?
For Instant Communication, Click Here
Description:
URBAN SV 530 /4B CNC Corner Cleaning Machine + WT 530 Automatic Turning Station

Fully automatic corner cleaning machine for vinyl window profiles with inner corner cleaning and freely programmable CNC axis controller with transom/bar machining.

The PC control is standard with an industrial PC based in Windows which guarantees an operator-friendly handling of the cleaning machine as well as an excellent and uncomplicated integration into your production and easy connection with other machines and lines.

All in all, (17) tooling positions are available so that up to (26) individual machining units are possible with multiple tooling. The standard tooling includes: two grooving or cutting knife units, two inside cleaning units, two drilling/ milling units and a disc cutting unit.

Specifications:
Profile height Max.: 130/200 mm
Profile height Min.: 30 mm (1-5/16")
Profile width Max. 150 mm (5.9")
Range RPM: 0 - 5,000 RPM

Dimension: 3200 x 3270 x 2280 mm
Weight: Approx. 2200 kG (4840 Lbs)

Standard Equipment:
Cross machining (multiple also possible)
130 mm clamping height (5.1")
PC control (serial standard with industrial PC) perfect integration to other machines and manufacturing units.
Profile identification with transfer option to other connected machines or PCs.
Different tools can be turned on or off as desired.
(17) Freely selectable tool places (Multiple equipment up to (26) single tools is possible).
Operation with automatic turn station – (included)
Standard tools exist of: 2 x Grooving or cutting knife unit, 2 x Internal grooving knife unit, 1 x Disc cutter unit
Can be fitted with special tools


NOTE: Machine is in excellent condition and ready for immediate shipment.

NOTE: Price includes “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
    Region: EUROPE (Click for Regional Map)
    Special Note: Best Buy
    Comment: PVC window corner cleaner from URBAN..Includes turning station!
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
