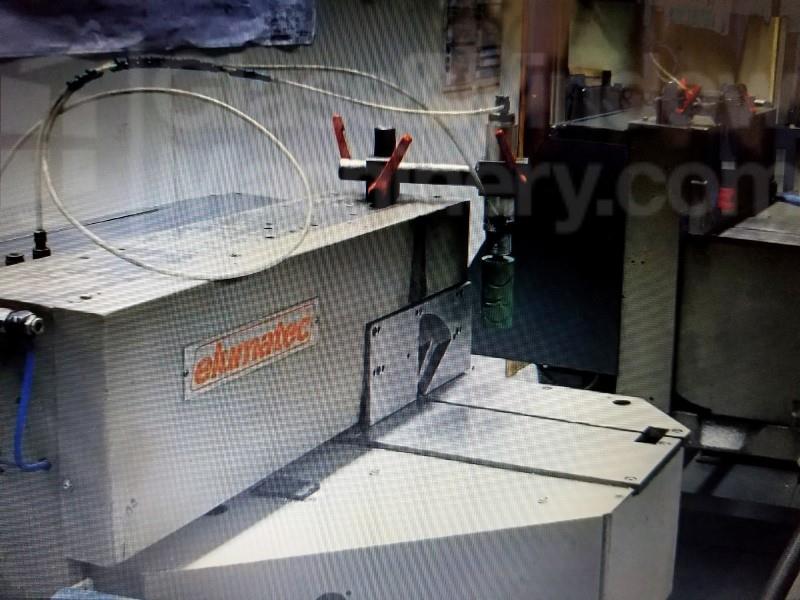

ELUMATEC DG 104 AUTOMATIC DOUBLE END MITER SAW


Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010488
Brand/Model:   ELUMATEC DG 104
Machine Type:   AUTOMATIC DOUBLE END MITER SAW
Year of Mfg.:   1993
Condition:   Very good condition
Elect./Voltage:   380 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:   $  130,000
Price:   $  32,500   USD     (Convert)
Financing:   $  661/Mo.
Questions?
For Instant Communication, Click Here
Description:
ELUMATEC DG 104 Twin Head CNC Cut-Off Machine For Window Profile Fabrication

Electronic double-head cut-off saw with automatic positioning of the mobile head via a DC motor controlled by numerical control. Pneumatic management of all angles up to 22-1/2° (external). 450 and 500 mm dia. blade capacity.

This high quality miter saw is designed for PVC and ALUMINUM profiles and can handle material from 13-3/4" (350 mm) to 177" (4500 mm) length with automatic positioning of the saw heads traveling on linear guides.

Specifications:
Cutting bed length: 6000 mm (19.7')
Min. cutting length at 90°: 350 mm (13-3/4")
Min. cutting length tilted at 45°: 350 mm (13-3/4")
Pivoting range inwards: 90° - 45° (up to 22.5° manual with digital display)
Tilting range inwards pneumatically: 90° - 45°
Saw blade diameter: 420 mm
Saw blade speed: 2,800 RPM
Power output per motor: 4 kW (5.5 HP)
Compressed air supply: 7 bar (95 PSI)

Features:
Capability for serial production as well as for special applications.
Universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound miter
External-dimension cuts possible for all cutting variants. Consequently, no complicated length calculations are necessary
Pivoting range with digital angle display

Equipped with:
Safety hoods
Digital display
Pulsed coolant system


NOTE: Machine has been cleaned & serviced and is in very good condition. From a small craftsman workshop, operated only 3 days a week for 6 hours a day. Ready for immediate shipment.

NOTE:  Price includes: “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
    Region: EUROPE (Click for Regional Map)
    Special Note: Safe Buy
    Comment: Production ELUMATEC DG104 with 6 meter (close to 20') bed!
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
