Trigger
EXF #:
WM-010483
Brand/
Model
:
ELUMATEC
SBZ 151
Machine Type:
PROFILE MACHINING CENTER
Year of Mfg.:
2017
Condition:
Like New
Elect./Voltage:
400 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:
$
550,000
Price:
$
289,000
USD
(Convert)
Financing:
$
5,744
/Mo.
Questions?
For Instant Communication, Click Here
First Name:
Last Name:
Company:
Phone:
Email:
Contact Me By:
Phone
Email
Questions:
Description:
ELUMATEC
SBZ 151
CNC Profile Machining Center - 7.2 M
5-Axis CNC automatic profile machining center designed for flexible and efficient machining of aluminium and thin-walled steel profiles. All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces.
6-Sided machining including from below with an angle head. One magazine can be equipped with (13) standard tools and (7) special tools (angle routing head and special cutters). An additional magazine for the saw blade, diameter 400 mm or 500 mm.
Capacities:
Traverse path X-axis 7300 mm / Vmax. 66 m/Min (167 FPM)
Traverse path Y-axis 1150 mm / Vmax. 40 m/Min (102 FPM)
Traverse path Z-axis 715 mm / Vmax. 40 m/Min (102 FPM)
Pivoting angle A-axis: for saw blade with diameter of 500 mm +/- 100° (for saw blade with diameter of 400 mm +/- 110°)
C-axis pivoting angle: +/- 182°
Positioning accuracy X-/Y-/Z-axis +/- 0.1 mm/m (A-/C-axis +/- 0.1°)
Specifications:
Max. spindle speed 24,000 RPM
Spindle power output: 20 kW S1
Right tool changer: (20) tool positions
Left tool changer, one saw blade with a diameter of 500 mm (400 mm optional)
Max. cutting tool dia.: 100 mm
Tool holder HSK-63F

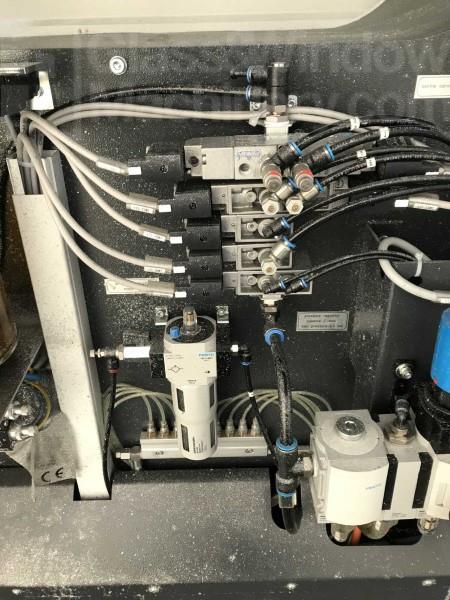

Compressed air supply 7 bar (100 PSI)
Air consumption per minute approx. 265 liters
Dimensions:
12410 x 3150 x 3065 mm (489" x 124" x 121")
Weight: 4200 kG (9250 Lbs)
Features:
Autonomous clamp positioning with absolute measurement system
Two separate working zones enable machining in shuttle operation
Secure access with safety fences and light barriers
5-Axis CNC control with independent CNC for 3D machining, notching and cutting.
The absolute rotary encoder system means no axis homing is required
Network connection and USB port
Operating panel with Windows operating system and 15" flat screen display
Remote maintenance via TCP/IP using existing Internet connection eluCloud ready
Includes The Following Additional Options:
Automatic length measuring (on both sides)
(2) External reference stops for (2) working zones
Autonomous tensioner displacement
Clock device with special tensioner
HSK-F63 quick-action chuck for clamping range 1 - 10 mm
Saw blade holder HSK-F63
Manual control unit for CNC-NUM with electric hand-wheel
Network connection PC control, telephone support
Angle milling head
Vapour extraction
NOTE:
The machine is in excellent "like new" condition
with only 1651 spindle hours
. - Ready for shipment.
NOTE:
PRICE INCLUDES EX-FACTORY’s
“Full Service Logistics”
from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
Region:
MIDWEST
(Click for Regional Map)
Special Note:
Like New
Comment:
Late model "Like New" ELUMATEC SBZ 151...doesn't get any better!
*Dimensions:
489" L x 124" W x 121" H
*Weight:
9,300 Lbs
Written By:
Greg Gibson
*Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
