URBAN AKS 6250 - 35/25 WINDOW LINE


Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010475
Brand/Model:   URBAN AKS 6250 - 35/25
Machine Type:   WINDOW LINE
Year of Mfg.:   2013
Condition:   Very good condition
Elect./Voltage:   400 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:   $  395,000
Price:   $  189,500   USD     (Convert)
Financing:   $  3,766/Mo.
Questions?
For Instant Communication, Click Here
Description:
URBAN AKS 6250 35/25 Horizontal CNC 4-Head Welding Machine + SV 530 - 4/B CNC Corner Cleaner + WT Automatic Turning Station

Fully automatic 4-Head welding machine with PLC controller for high production PVC window fabrication environments.

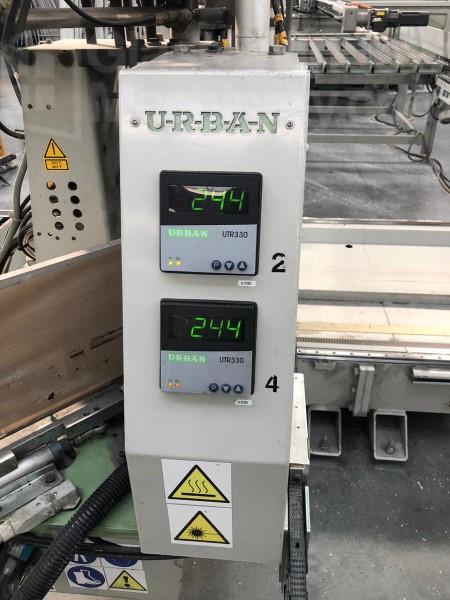

All parameters (e.g welding temperature, heating time, fusing pressure, joining pressure, joining time) can be individually adjusted – this allows an optimal adaptation to different profiles. IPC control with high-quality color touch screen and internet interface ensures operator friendly handling of the machine and uncomplicated integration in production lines.

A big plus regarding flexibility is the weld seam regulation of 0.2 mm to 2.0mm. Due to this function an exact welding of white and coloured profiles is possible while there is no negative effect on the corner strength when welding white profiles with a weld seam of 2.0 mm.

Specifications:
Max. profile height: 200 mm (7.87")
Min. profile height: 40 mm (1.57")
Max. profile width: 150 mm (5.9")
Welding dimensions in width X 380 - 3,500 mm (137.8")
Welding dimensions along the length "Y" 320 - 2,500 mm (98")
Weld seam limitation of 2.0 mm

Dimensions: 5700 x 4400 x 1600 mm
Weight: 3,000 kG (6,600 Lbs)

Standard Equipment:
Barcode scanner
Carbide knives
Central system for fixing tsulag
The possibility of angular welding with parallel mixing to ensure maximum strength of the seam
Welding of (4) angles of 90° in one process
Loading & Unloading  the machine in a horizontal position (manually or automatically)
Control over the size of welding
Automatic adjustment to the height of the profile
Welding of the frame profile without tsulag
Industrial grade computer based on Windows


URBAN SV 530 CNC Corner Cleaning Machine + URBAN WT Automatic Turning Station

Fully automatic corner cleaning machine for vinyl window profiles with inner corner cleaning and freely programmable CNC axis controller with transom/bar machining.

The PC control is standard with an industrial PC based in Windows which guarantees an operator-friendly handling of the cleaning machine as well as an excellent and uncomplicated integration into your production and easy connection with other machines and lines.

All in all, (17) tooling positions are available so that up to (26) individual machining units are possible with multiple tooling. The standard tooling includes: two grooving or cutting knife units, two inside cleaning units, two drilling/ milling units and a disc cutting unit.

Specifications:
Profile height Max.: 130/200 mm
Profile height Min.: 30 mm (1-5/16")
Profile width Max. 150 mm (5.9")
Range RPM: 0 - 5,000 RPM

Dimension: 3200 x 3270 x 2280 mm
Weight: Approx. 2200 kG (4840 Lbs)

Standard Equipment:
Cross machining (multiple also possible)
130 mm clamping height (5.1")
PC control (serial standard with industrial PC) perfect integration to other machines and manufacturing units.
Profile identification with transfer option to other connected machines or PCs.
Different tools can be turned on or off as desired.
(17) Freely selectable tool places (Multiple equipment up to (26) single tools is possible).
Operation with automatic turn station – add-on possible.
Standard tools exist of: 2 x Grooving or cutting knife unit, 2 x Internal grooving knife unit, 1 x Disc cutter unit
Special tools upon request

NOTE: Machinery in excellent condition and ready for immediate delivery. Under power and currently in production with personal inspection available on request.
Installation & training services available but not included.

NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
    Region: EUROPE (Click for Regional Map)
    Special Note: Best Buy
    Comment: Late model URBAN window production line at a bargain price!
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
