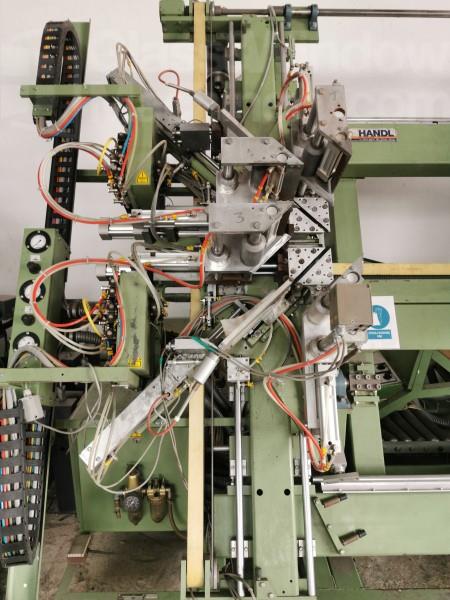

URBAN AKS 1400 ETL 4-HEAD VERTICAL WELDING MACHINE


Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010474
Brand/Model:   URBAN AKS 1400 ETL
Machine Type:   4-HEAD VERTICAL WELDING MACHINE
Year of Mfg.:   1996
Condition:   Very good condition
Elect./Voltage:   220/380 V, 50 Cy, 3 Ph.
Appr. Repl. Cost:   $  130,000
Price:   $  15,800   USD     (Convert)
Financing:   $  321/Mo.
Questions?
For Instant Communication, Click Here
Description:
URBAN - AKS 1400 ETL, ...Vertical 4-Point Welding Machine

Vertical 4-Head Welding Machine for welding of vinyl profile angles of 90° with a heated welding bead restriction of 2 mm. Quick-change of the outer contour limiters through a screwless backstop system ensures a flexible production process. The clamping cylinders adjust automatically to the required profile height.

Automatic adaption of fusing time to different profile cross sections. Compensation welding system allows welding of profile bars with a cutting tolerance of up to +3 mm. Parallel thrust procedure of welding carriages to increase corner strength.

Easy profile insertion through preselection of the insertion position for the upper & lower welding heads.

Features:

  Discharge function


  Diagonal welding - Required for transoms


  4-Corner welding


  Welding of prefinished T-elements


  Weld seam limitation of 0.2 mm via stainless steel blades and heated crush plates


  Possible incorporation into a complete Production Line.

Specifications:

  Central Control Panel, electronic positioning


  Total load approx.: 6 kW.


  Min. frame or sash size: 12.2" x 13.4" (310 x 340 mm)


  Max. frame or sash size: 62.6" x 100.8" (1,590 x 2,560 mm)


  Max. height for fixtures or profiles: 110 mm (4-3/8")


  Machine weight 5,512 Lbs (2,500 kG)


    Region: MIDWEST (Click for Regional Map)
    Special Note: In Auction
    Comment: An older Workhorse machine that is ready for delivery!
    *Dimensions: 0" L x 0" W x 0" H
    *Weight: 5,512 Lbs
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
