EXF #:   WM-010459
Brand/Model:   STURTZ COMPLETE
Machine Type:   WINDOW LINE
Year of Mfg.:   2011
Condition:   Very good condition
Elect./Voltage:   230/400 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:   €  1,200,000
Price:   €  249,500   EUR     (Convert)
Financing:   €  4,959/Mo.
Questions?
For Instant Communication, Click Here
Description:

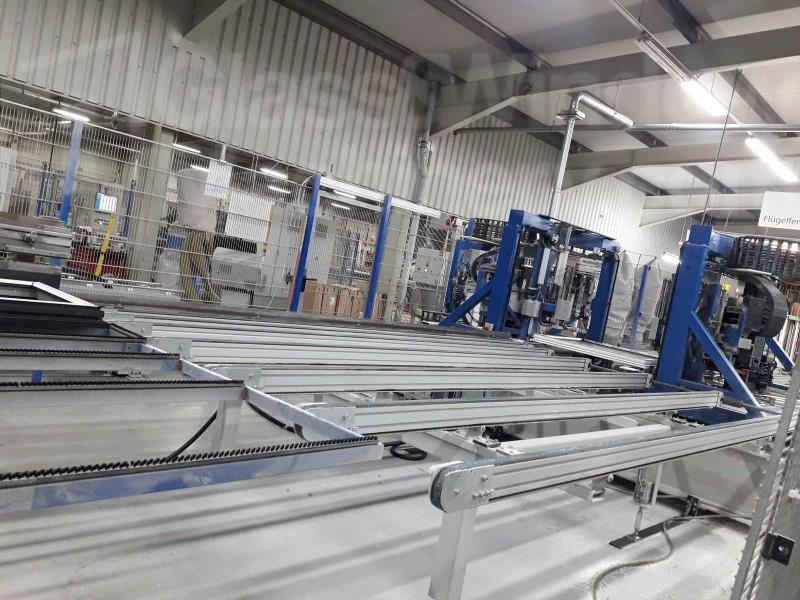

STURTZ CNC PVC Window Cleaning/Welding Production Line

(2) Lines - (1) For Frame And (1) For Sash

German engineered CNC cleaning and welding production line for PVC windows. Suited for mid to large production manufacturing environments and compatible with all PVC window profiles.

PC-based control technology with LCD process-reliable display of production and machine data with easy to operate intuitive menu navigation and the visual representation of machining processes on the touchscreen display.

(1) Window Cleaning/Welding Production Line For FRAMES Consists Of The Following Components:

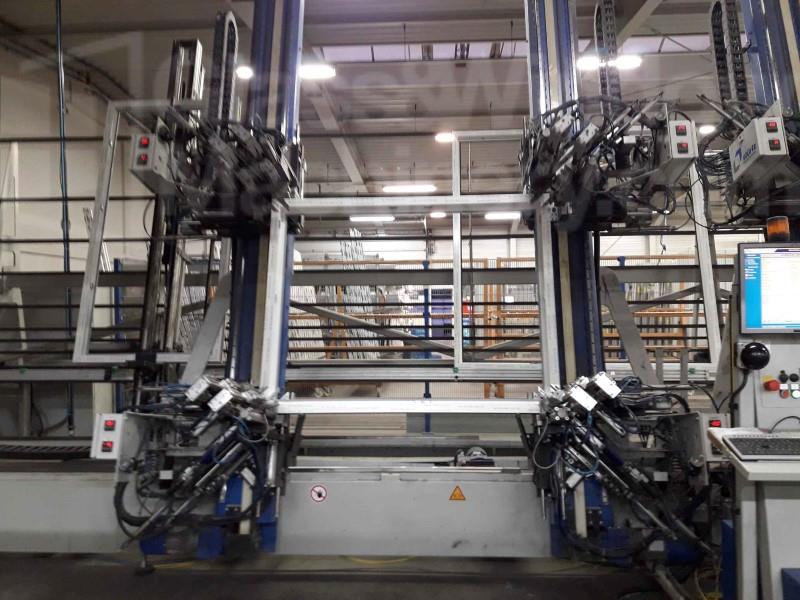

STURTZ VSM 40/26-P Multi-Point (4-Head) Vertical Welding Machine (2011)
CNC simultaneous welding of four corners at an angle of 90° with parallel welding feed. With electronic positioning of welding heads, PC control, Weld seam limitation of 2 mm & automatic out-feed.

Min. depth: 30 mm (clamping path, 120 mm)
Max. depth: 120 mm (clamping path, 120 mm)
Max. facing width: 130 mm (5.1")
Min. element size (clear inner dimension): 325 x 320 mm (12-3/4" x 12-1/2")
Max. element size: 4000 x 2600 mm (157" x 102")
Weight: 3100 kG (6,820 Lbs)

STURTZ VSM 30/26-P Multi-Point (4-Head) Vertical Welding Machine (2011)

STURTZ HVKT 40/26 Tilting Transport Table (2011)
The Tilting Table that brings the elements from vertical to horizontal position.

STURTZ MC-H-2K-3D 40/30 CNC Twin Head Cleaner - With Corner Stay Bearing And Contour Disc
CNC Corner cleaning machine with (4) interpolating axes for a complete machining of corners of uPVC window frames. Fully automatic cleaning of visible surfaces, outer corners, seal grooves, inner corners on uPVC window frames and sashes.

Workable profile width: 50 - 140 mm (2" x 5.5")
Workable profile height: 50 - 180 mm (2" x 7.1")
Machine dimensions: 5700 x 4200 x 2100 mm
Weight: 1500 kG

(2) Window Cleaning/Welding Production Line For Sashes Consists Of The Following Components:

STURTZ SE-VSM 35/26-A Multi-Point (4-Head) Vertical Welding Machine (2004)

STURTZ SE-VSM 35/26-B Multi-Point (4-Head) Vertical Welding Machine (2004)

STURTZ Transport Table (2004)

STURTZ SE-CNC-H-2K CNC Twin Head Cleaner (2004)


NOTE: Machine lines are in excellent working condition - Service of Experienced Technicians available for "Professionally disconnecting, packaging, containerizing and reinstallation" of the equipment.

NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
    Region: EUROPE (Click for Regional Map)
    Special Note: Best Buy
    Comment: This complete STURTZ production line produces 400 windows a day!
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
