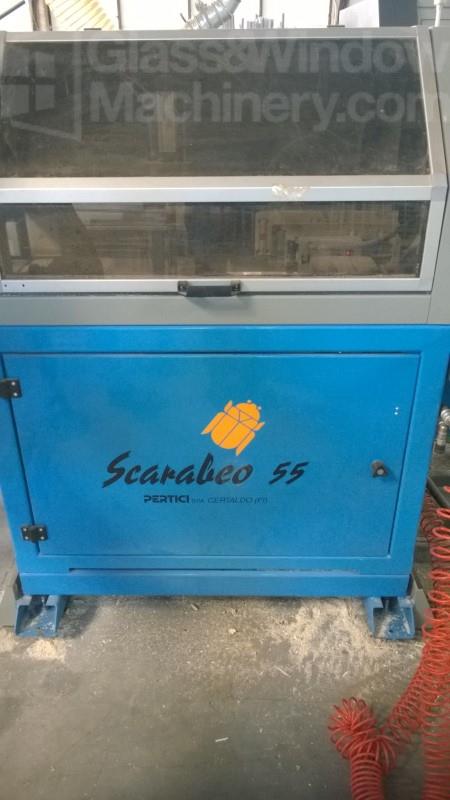

PERTICI UNIVER-SC55 PROFILE MACHINING CENTER


Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010403
Brand/Model:   PERTICI UNIVER-SC55
Machine Type:   PROFILE MACHINING CENTER
Year of Mfg.:   2010
Condition:   Very good condition
Elect./Voltage:   400 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:   $  300,000
Price:   $  97,500   USD     (Convert)
Financing:   $  1,949/Mo.
Questions?
For Instant Communication, Click Here
Description:
PERTICI UNIVER-SC55 CNC High Performance PVC Window Cutting Center

CNC cutting center with (2) controlled axis is designed for cutting PVC profiles with maximum cutting speed and highest quality. The machine performs the operation of profile loading from the bars stock, cutting and unloading of piece, in complete autonomy and without the assistance of the operator.

The working direction is available according to the customer needs either from left to right and vice-versa. The software, developed entirely by Pertici Industries, ensures the better management of the working cycle and the cutting lists automatically interfacing with the main cutting list processing programs available on the market.

The Machining Center Is Made Up Of The Following Stations:

Automatic Bar Loading Unit
Loading unit with max capacity up to 12 bars of 6.6 m (260") length (depending on the dimension of the profile section) • Bar presence detection device on automatic bar pusher • Belt system with possibility of loading offcut pieces (minimum length of the offcut piece 400 mm) • Bars loading unit with belts

Cutting Unit
Blade rotation to cut at 45° - 90° - 135° • Centering device, which allows to always have the center of rotation of the cutting unit matching with the center of the profile section, in order to also carry out wedge cuts automatically • Front door for free access to maintenance in the cutting area • Automatic scraps evacuation system

Automatic Unloading And Storage Unit
Automatic unloading device of cut pieces • Unloading storage unit with safety photocell • Maximum unloading capacity up to (15) pieces.

Features:

  Windows Embedded operating system


  Storing profile data (up to 1000)


  Optimization on cutting lists


  Complete diagnostic help on line


  PLC for management of working cycle


  Touch screen industrial PC panel TFT 15”


  USB port


  Ethernet port for LAN connection


  (2) CNC controlled axis


  Carbide saw blade 500 mm (20")


  Pneumatic rotation head at 45° - 90° - 135


  Pneumatic blade advance


  Label Printer kit


  Motorized chips and waste cut conveyor complete with suction outlet for chips separation.


  Industrial dust suction system with chips collecting bags and exhaust air filters

Specifications:

  Blades speed: 2800 RPM


  Max. profile dimensions: 134 x 148 mm


  Min. profile dimensions: 36 x 48 mm


  Max. bar length: 6500 mm (256")



  Dimensions: 12300 x 2300 x 3000 mm


  Weight: 2400 kG (5280 Lbs)

NOTE: The machine is in very good condition and ready for immediate delivery.

NOTE: Price includes. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
    Region: MIDWEST (Click for Regional Map)
    Special Note: Best Buy
    Comment: Late model Italian engineered CNC cutting center for PVC windows!
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Greg Gibson
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
