WEINIG CONTUREX PROFILING CENTER


Additional Photos (Click to view Larger)



For Immediate Answers Contact:
Greg Gibson

(800) 374-5009 ext. 318
Intl. +1 (704) 841-2001
Email Me





If not available, try his/her backup:
Carlos Rossi at ext ...317


EXF #:   WM-010272
Brand/Model:   WEINIG CONTUREX
Machine Type:   PROFILING CENTER
Year of Mfg.:   2006
Condition:   Very good condition
Elect./Voltage:   400 V, 50/60 Cy, 3 Ph.
Appr. Repl. Cost:   €  725,000
Price:   €  298,000   EUR     (Convert)
Financing:   €  5,923/Mo.
Questions?
For Instant Communication, Click Here
Description:
WEINIG CONTUREX CNC Profiling Center:

Profiling Center for the manufacturing of small and large batches, JIT per order, rapid reproduction of workpieces - Profiling, Milling, Drilling, and Trimming.


  Working dimensions: Height 10 - 100 mm (3/8 - 4"), width 25 - 260 mm (1" to 10-1/4"); workpiece length 180 - 3,000 mm (7" to 120") and table length 3,000 mm; Powergrip X-, Y-Axis adjustment 110 - 120 MPM. Distance between 1st and 2nd clamping element 60 mm all others 150 mm (5.9").

  Machining unit #1: Motor with brake 10,5 kW (14 HP) for tool with HSK 63F. Speed electronically adjustable from 0 - 18,000 RPM, with right to left tool movement. Maximum tool dia. 280 mm with tool length capability up to 290 mm (11.4").

  Z-axis travel speed up to 60 MPM (196 FPM); Y-axis travel up to 120 MPM (394 FPM) and C-axis rotation up to 450°/Sec. Tool magazine for (18) tools with 100 mm distance between holders.

  Machining unit #2: Motor with brake 10,5 kW (14 HP) for tool with HSK 63F. Speed electronically adjustable from 0 - 18,000 RPM, with right to left tool movement. Max. tool dia. 280 mm with tool length capability up to 290 mm (11.4"). Variable speed Z-axis up to 60 MPM (196 FPM). Y-axis travel speed up to 120 MPM (394 FPM) and C-axis rotation up to 450° Sec; 18-Tool magazine.

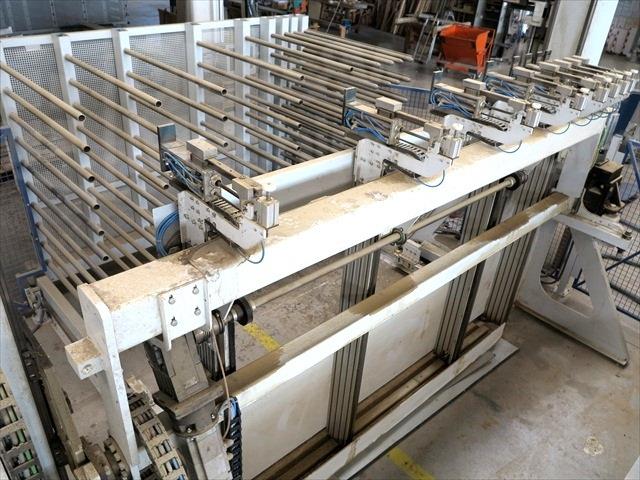

  PowerGrip outfeed automatic takeover from infeed gripper. Inlet with pneumatic clamping elements, individually controlled.

  Automatic Waste Drop to waste conveyor and drop chute for processed work pieces. Waste transport via (2) processing conveyors for residue from manufacturing.

  Operator & Machine Control: Programming and control system SIEMENS "SINUMERIK 840 D" + AlphaCam SOFTWARE with the following characteristics: PC - color screen - CD ROM - keyboard. Control panel integrated electrical cabinet to control the machine.

  Mechanical Material Handling System: Infeed part length 180 - 3,300 mm (7" to 130"); conveyor length 2,000 mm (78") driven by 0.37 kW (0.5 HP) motor.

  Includes: C3000 - outfeed conveyor and Security norm CE Safety fence protection installed on/around the machine.

Actual model is WEINIG CONTUREX
    Region: EUROPE (Click for Regional Map)
    Special Note: Best Buy
    Comment: Top brand & model in top condition, a WEINIG Conturex!
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Staff Member
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
